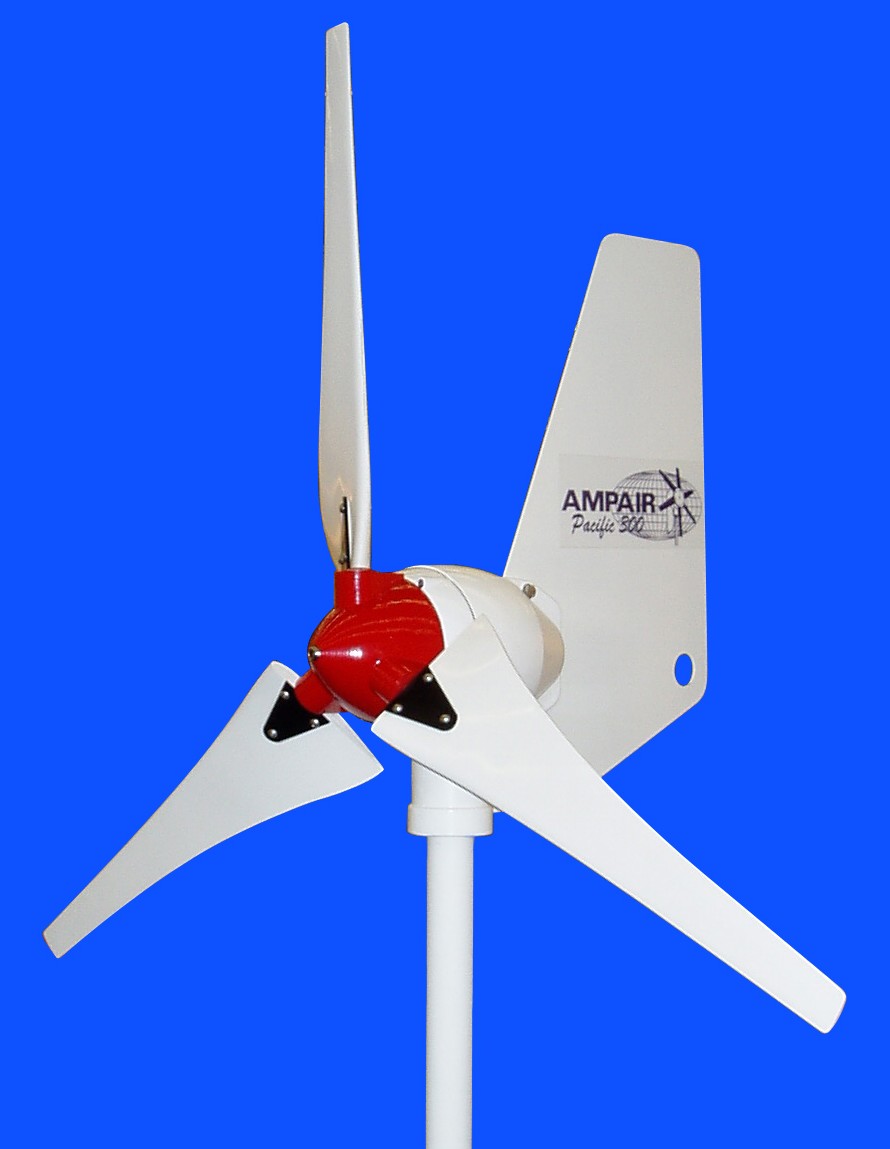

Ampair (Pacific) 300 wind turbine system

The Ampair (Pacific) 300 wind turbine system is suitable for larger yachts, small industrial locations, or remote holiday cabins. This microwind turbine has evolved from the outstandingly rugged Ampair 100 unit with the addition of the revolutionary PowerFurl^TM blade pitch control system, advanced aerodynamic blade design and a more powerful generator.

Ampair 300 Features: combines non-intrusive operation with elegant modern styling, accurate aerofoil construction of each turbine blade optimises performance, minimises noise and vibration, and improves power-to-weight ratio, rigid blade design avoids "whooping", "motorboating", or "screeaming", (vibration, resonance, and flutter), integral marine-grade sealing system protects internal components from condensation and corrosion, simple pole mounting allows installation in many locations, operates with no thermal cut-outs, commutator brushes, or complex electronics, revolutionary simultaneous PowerFurlTM blade pitch control system reduces turbine speed in high winds whilst maintaining power output, three phase AC output from turbine minimises voltage drop and permits use of smaller cables; external DC rectifier included in system, wide range of accessories available including various mounting options

Ampair 300 Technical Specifications

Table of Ampair 300 Technical Specifications

Power rating	300 watts at 12.5 metres per second (25 knots) wind speed
Power curve	See graph below
Voltage options	12 volt DC; 24 volt DC
Electrical output	three phase AC from turbine to DC rectifier (supplied)
Start-up windspeed	3 metres per second (6 knots) wind speed*
Over speed protection	PowerFurlTM blade pitch control system
Blades	3 blades manufactured from glass reinforced polypropylene
Housing	Die cast aluminium with Alacrom 1200 and powder coating
Colours	White

*start up wind speed after running-in period

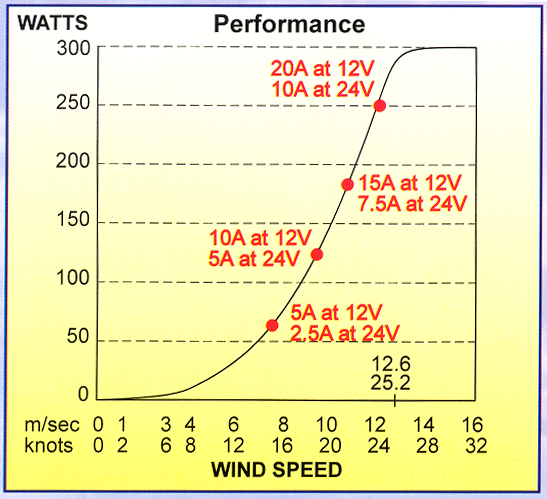

Ampair 300 Power Curve

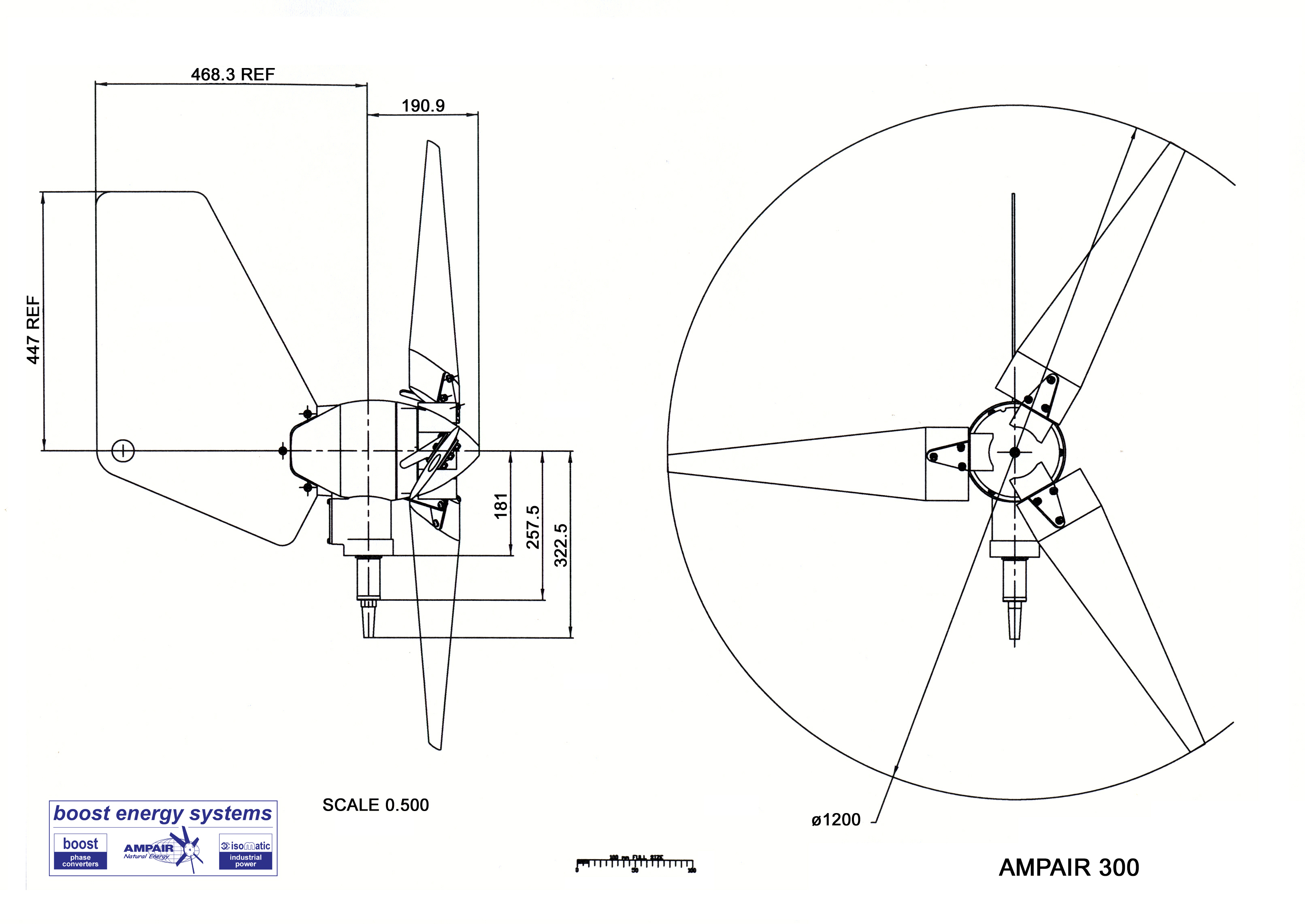

Ampair 300 Dimensions

Ampair 300 Accessories

Ampair 300 Basic Stern Mount

The Ampair Pacific 300 basic stern mount kit consists of two 2" white stoved aluminium extension tubes and joiners, strut to backstay, two stainless steel wire side stays, all necessary fasteners and 2 base mounting brackets. When installed the lowest blade tip height is 2.2m (7 feet) above the deck. This mounting kit is a taller version of the Ampair 100 stern mount kit.
Mounting Note:- The thrust loading of the wind turbine far exceeds the gravitational weight of the generator in a storm. This factor must therefore be taken into consideration when selecting and designing an installation. The mounting should be substantial and braced by at least 2 solid stays at right angles or 3 equally spaced wire stays, or a combination. This is why the kit includes one solid stay and two guy wires.

Ampair 300 de Luxe Stern Mount

A well designed and engineered marine wind turbine like the Ampair 300 needs an equally well engineered mounting system to bring out the best in the turbine. Traditional wind turbine mounting systems pose problems fitting to modern backstay systems or yachts with a wide ice-cream scoop stern. A radical re-design was needed and Ampair set out to work with Scanstrut, specialist manufacturers of mounting systems, to produce a new generation, free standing stern mount system.

The system comes in kit form and consists of a 2.5m long, 3” diameter aluminium, white powder coated pole which accepts the spigot of the generator. The base has a universal ball and socket for easy mounting to any deck angle on the stern of the yacht. Two adjustable stainless steel bracing struts clamp to the pole at their upper ends and mount to the deck at their lower ends. These resist the thrust and inertial loads of the wind turbine. A stainless steel guardrail bracing strut is also included.

The power cable from the generator connects inside the plug and socket in the pole and it exits at the base through the deck. Connection below deck is to a matched stop switch, ammeter and appropriate regulator and then to the yacht’s batteries. The system will also accept other Ampair marine wind generators: the Ampair 100 wind turbine and the Aquair 100 wind conversion module.

Ampair 300 Gantry Mount

Ampair manufacture a basic gantry mount for the Ampair 300 which can be installed on stern gantries of cruising yachts, or also on suitable land locations. There are two versions - an alloy one which is alacromed and powder coated, and a stainless steel version. The Ampair 300 gantry mount can accept an Ampair 100 but not vice versa.

Ampair 300 Mizzen Bracket Mount

The Ampair 300 mizzen bracket for ketch mounting is bolted or riveted to the mast and is constructed of 100mm x 50mm aluminium alloy box section to withstand torsional loading from any wind direction. Finish is stoved white paint. This bracket can be fitted to masts of differing dimensions by bending the fixing plates to suit or packing with spacers. Bracket is then bolted or riveted in position. Installation can be above or below a radar scanner without threat of interference. Do not install an Ampair 100 on an Ampair 300 mizzen bracket.

Adaptors

Ampair 300 to Ampair 100 adaptor	Ampair DIY scaffold pole adaptor	Ampair DIY pole
The Ampair 100 has shorter blades than the Ampair 300. This adaptor extends an Ampair 100 mount vertically upwards to allow an Ampair 300 to be installed. It should not be used to extend an Ampair 100 mizzen bracket to accept an Ampair 300. This is because the turning radius of the Ampair 300 is greater than the Ampair 100.	Many clients choose to manufacture their own land mountings using 48mm OD scaffold pole. This adaptor has a 48mm ID section at one end to suit a scaffold pole and a 40mm ID section at the other end to accept an Ampair generator. Made from anodised alloy.	Many clients choose to manufacture their own land mountings using 48mm OD scaffold pole. This adaptor has a 48mm ID section at one end to suit a scaffold pole and a 40mm ID section at the other end to accept an Ampair generator. Made from anodised alloy.

Charge control regulators

 AMPAIR manufactures two 300 watt power Charge Control Regulators in 12-volt or 24-volt options for protecting lead acid batteries from overcharge They are not "shunt" type regulators, which dissipate excess charge as heat, but an electronic power switch which disconnects the generator from the battery at the regulation voltage.

Configureable regulator	Standard regulator - 12v	Standard regulator - 24v
Regulator 12/24v, User Configureable, Dual Voltage, Dual Input (wind+solar) or Dual Output (twin battery) A configureable regulator which can be set up for either 12v or 24v operation. It can also be selected for either two input channels and one output channel; or one input channel and two output channels. Input channels can be any combination of wind or solar. Besides PWM charge control the regulator has LED status indicators indicating battery status (discharged/charging/charged) and generator status (charging). To be used in conjunction with separate rectifier (supplied). Size 230 x 170 x 55mm. Weight 1kg.	Regulator, 300 Watt, 12v, Single Battery Regulator 12v, 300 Watt Single Battery. Automatic charge regulator for Ampair Pacific 300 wind generator. Prevents battery over-charge and limits battery voltage to 14.4v maximum. Includes integral rectifier. Very solid die-cast case with encapsulated electronics. Size 150 x 142 x 63mm excluding mounting flanges. Weight 1kg.	Regulator, 300 Watt, 24v, Single Battery Regulator 24v, 300 Watt Single Battery. Automatic charge regulator for Ampair Pacific 300 wind generator. Prevents battery over-charge and limits battery voltage to 28.8v maximum. Includes integral rectifier. Very solid die-cast case with encapsulated electronics. Size 150 x 142 x 63mm excluding mounting flanges. Weight 1kg.
